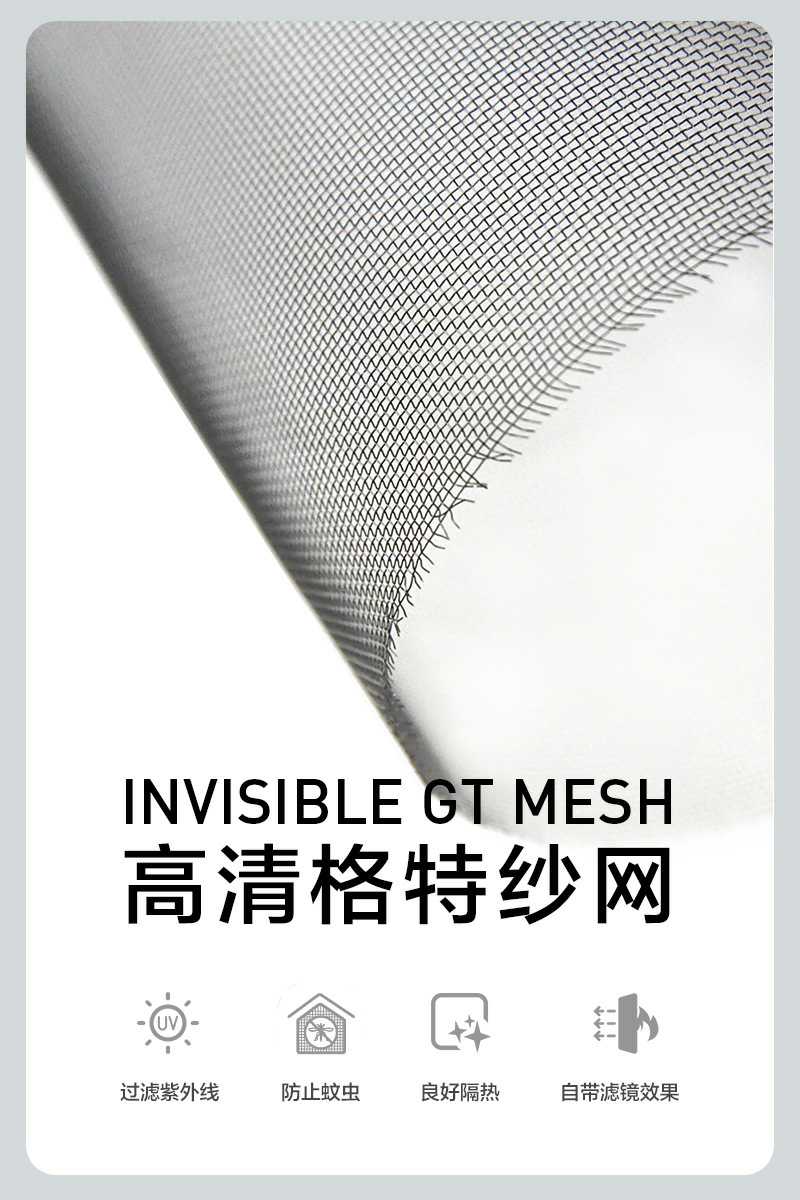

產品名稱：高清格特紗網 GT Invisible ss mesh
品牌名稱：冀安篩網 JI'AN MESH

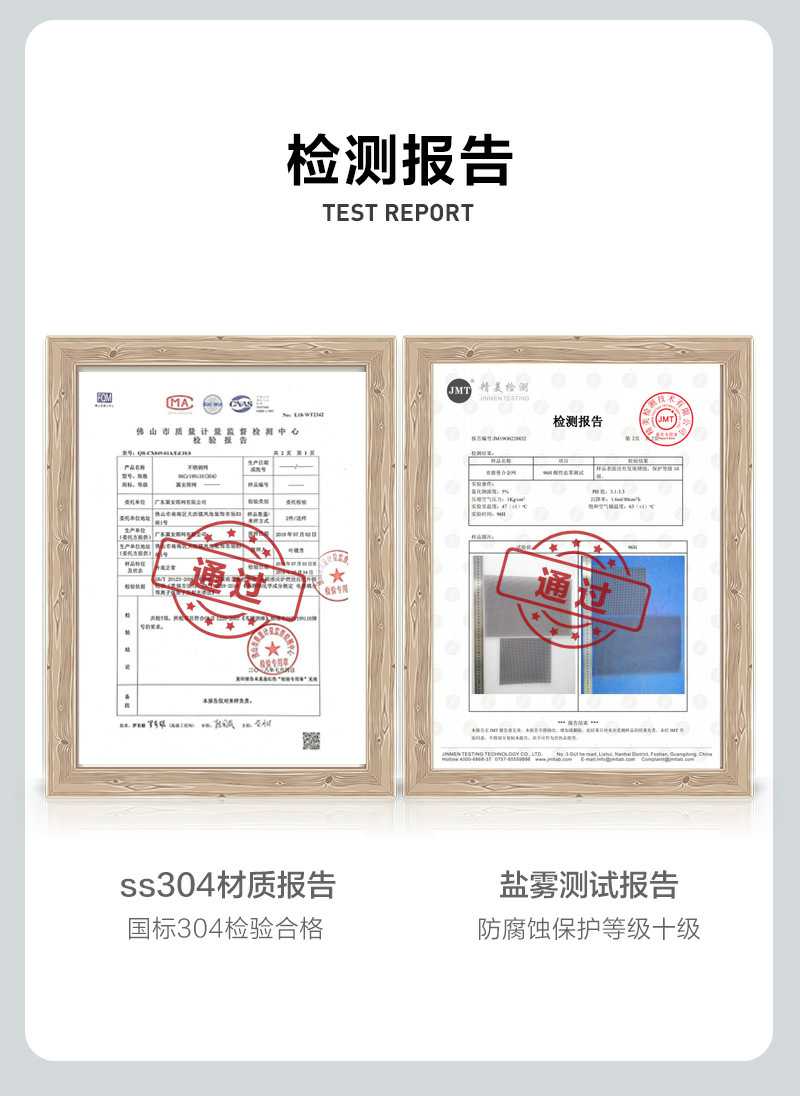

產品材質：國標304，通過質量技術監督局7項元素鑒定
Material類型(材質): 304不銹鋼 304 Stainless steel
Process工序：拔絲工藝 Wire drawing process
Warp thread count 經線密度：20目 Mesh
Weft thread count 緯線密度：20目 Mesh
Warp wire diameter 經線絲徑：0.175mm +0.03/-0.03mm
Weft wire diameter 緯線絲徑：0.175mm +0.03/-0.03mm
Weave編織：平紋編織 plain weaving
Weight (kg/m2)織物重量(kg/m2)：0.32kg

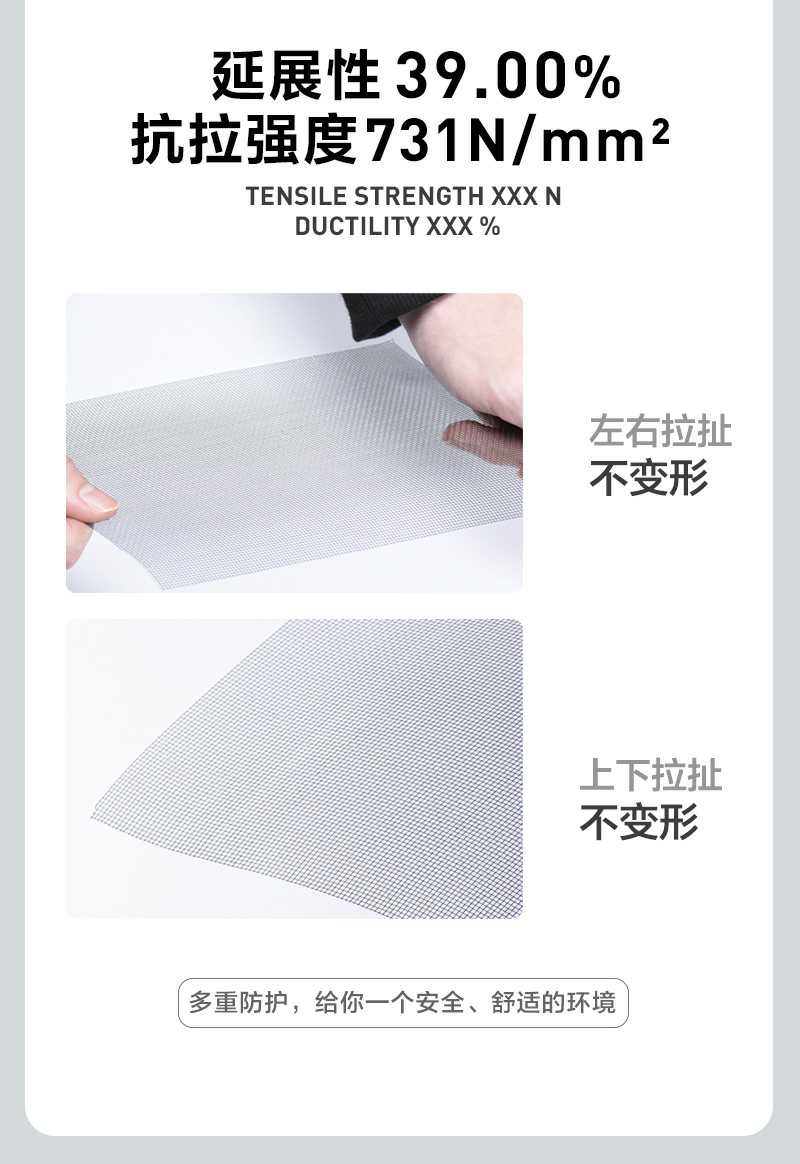

Elogation (%)延展率(%)：45-55%
Coating涂層：是Yes
Tensile strength（MPa）抗拉強度（MPa）：700-740MPa
Coating Process 噴涂工藝：高分子涂層 Polymer
Coating thickness（μm）涂層厚度（μm）：35μm
Curing conditions 固化條件：420°C / 70m/min
Color顏色：黑色 Black
Packing包裝：紙箱 Carton
Ventilation rate通風率：74%
Open area ratio開孔率：74%
Aperture size孔徑：1095 μm
Light transmittance透光率：78%
Ultraviolet blocking rate紫外線阻隔率：31%
Infrared blocking rate紅外線阻隔率：26%
Product Features產品特點：高清格特紗網采用國標304不銹鋼（06Cr19Ni10），即使在沿海地區銷售超過8年，也未收到生銹的售后投訴。這得益于其特殊的表面處理工藝，與傳統靜電粉末噴涂工藝不同，高清格特紗網在編織前對不銹鋼絲進行防銹涂層和耐候涂層的雙重處理，即使網絲在使用中移動，也不會露出不銹鋼基材，確保全面防腐。相比定型噴涂紗網，高清格特紗網更適合用于制作大紗門。其經緯絲之間不固定，在加工時遇到不平整問題可以局部繃緊紗網，保證網面平整，就像羽毛球或網球拍的張力調整原理一樣。
Invisible GT Mesh uses national-standard 304 stainless steel (06Cr19Ni10) and has been sold in coastal areas for over 8 years without any rust-related complaints. This is due to its special surface treatment, which applies both anti-rust and weather-resistant coatings before weaving, unlike traditional powder coating. Even if the wires shift during use, the stainless steel base remains protected. Invisible GT Mesh is ideal for large screen doors, as its warp and weft wires are not fixed, allowing for localized tension adjustments to keep the mesh flat, similar to how rackets adjust tension in badminton or tennis.
